300-440 Designing and Implementing Cloud Connectivity

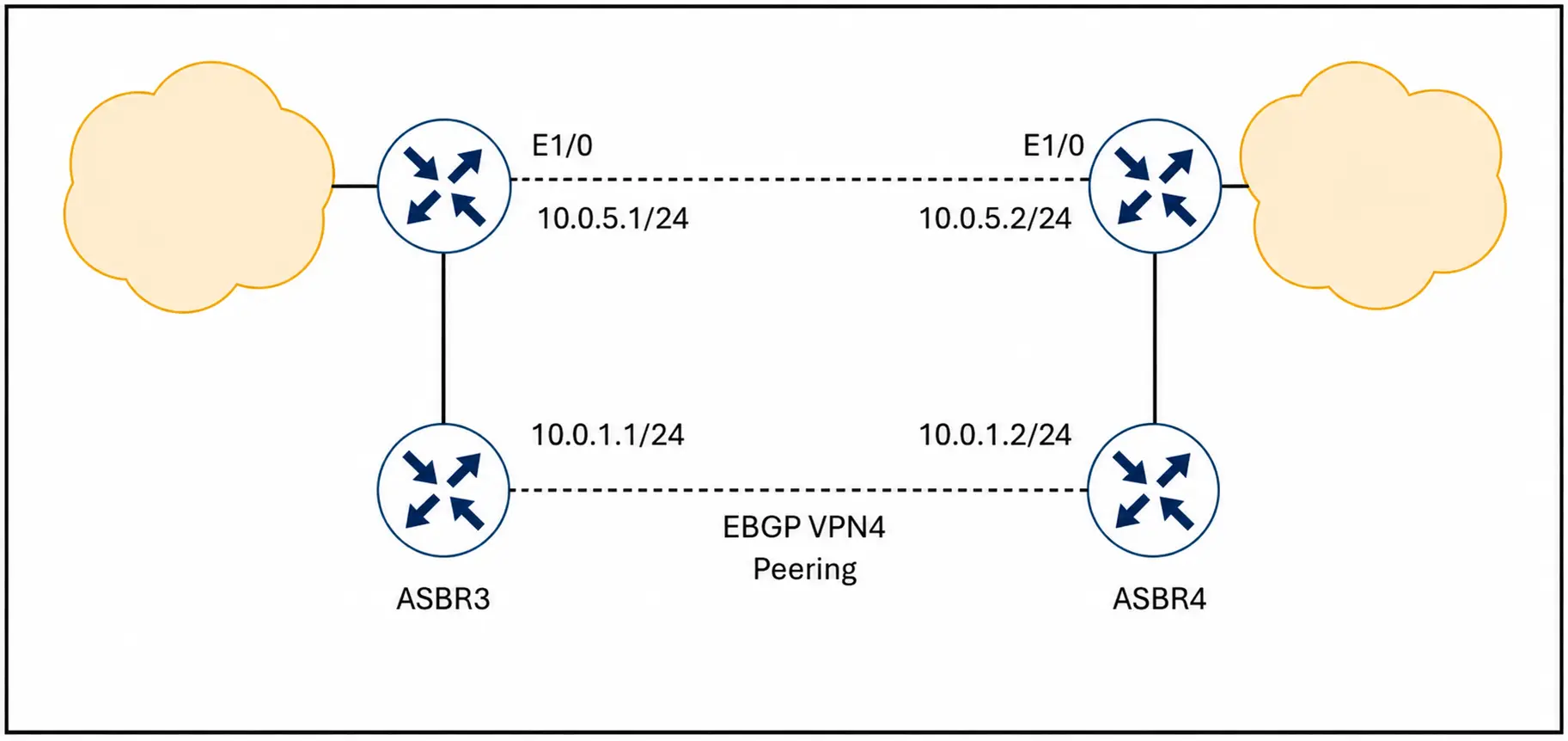

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receives two paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails.  References  :=  IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco ,  BGP Additional Path s

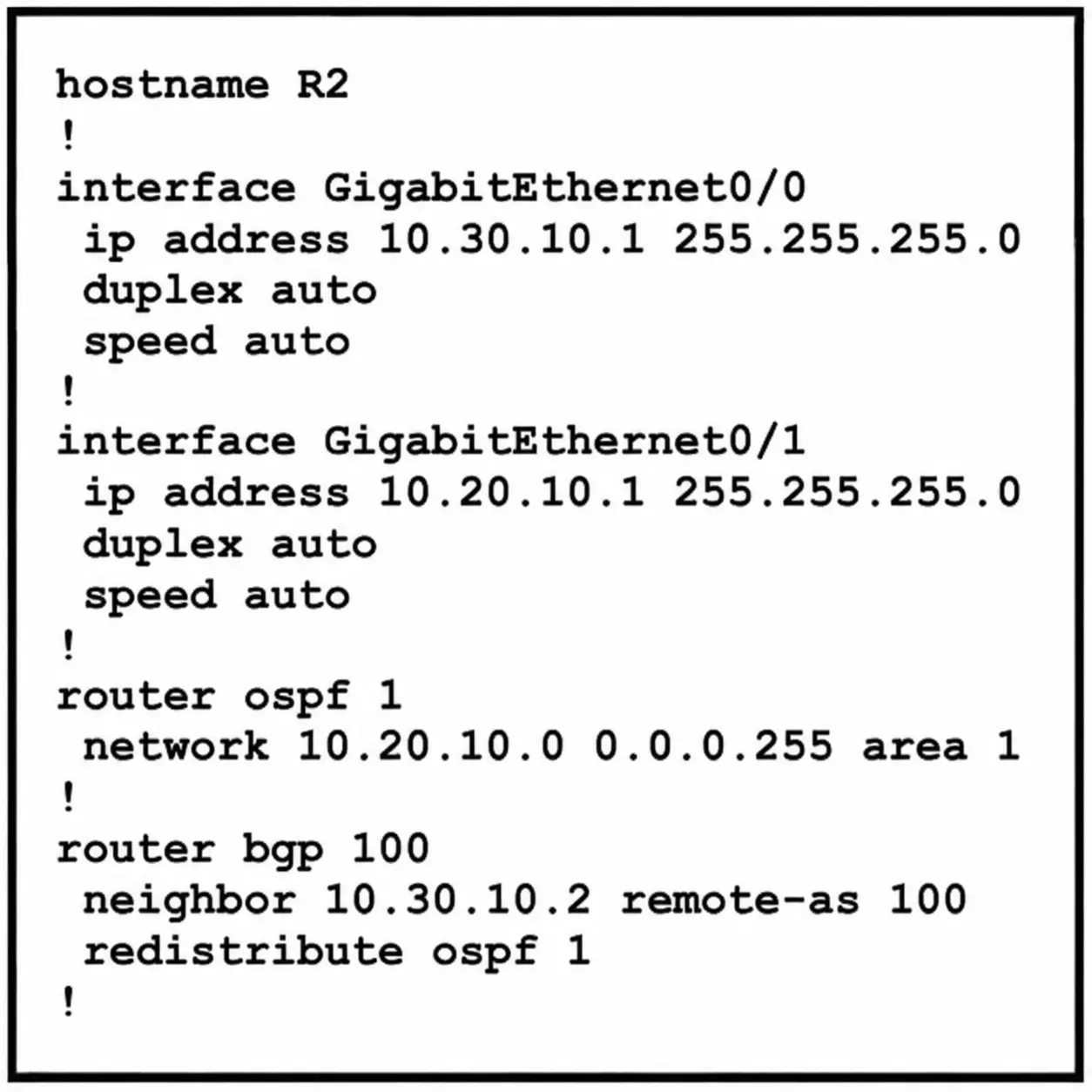

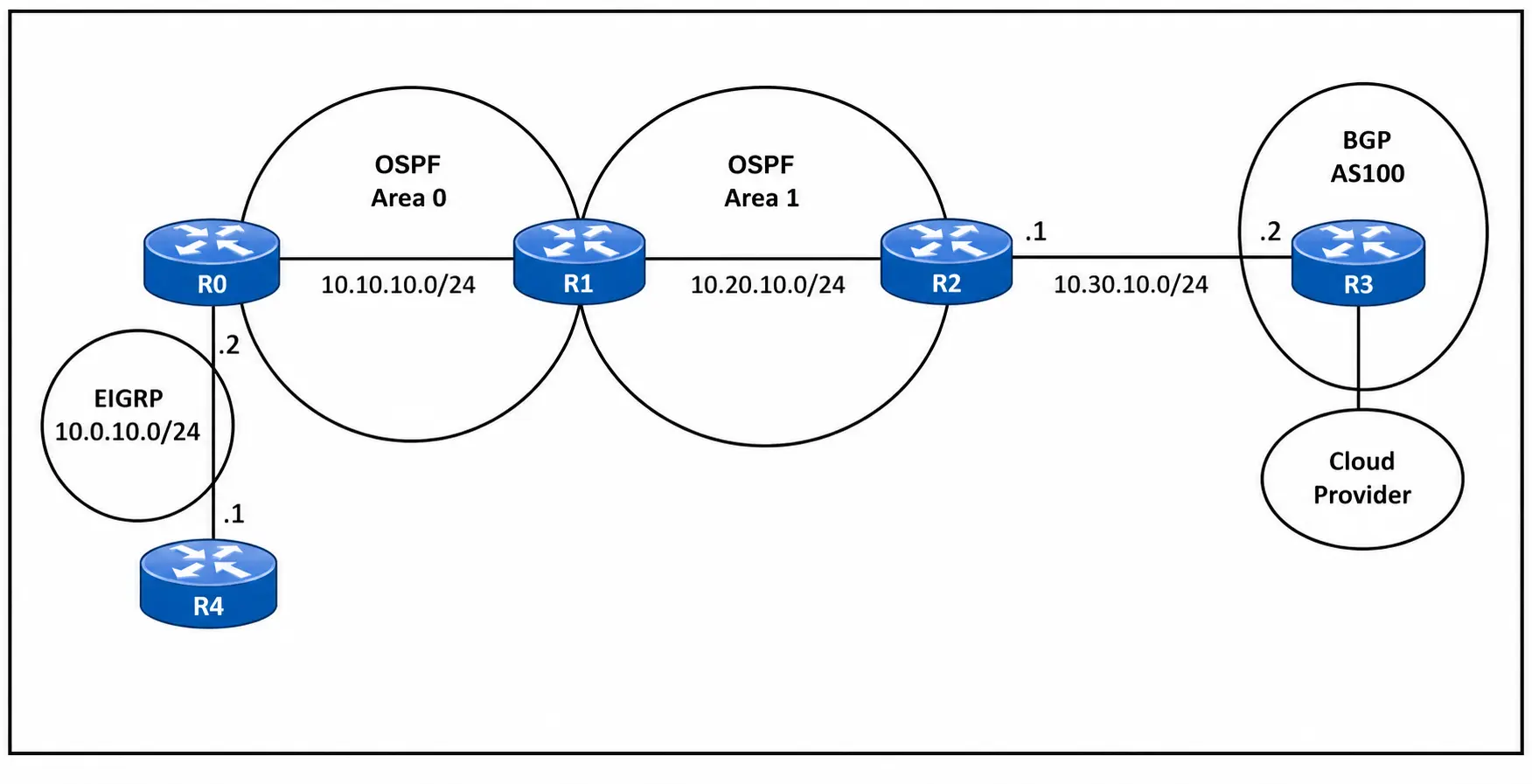

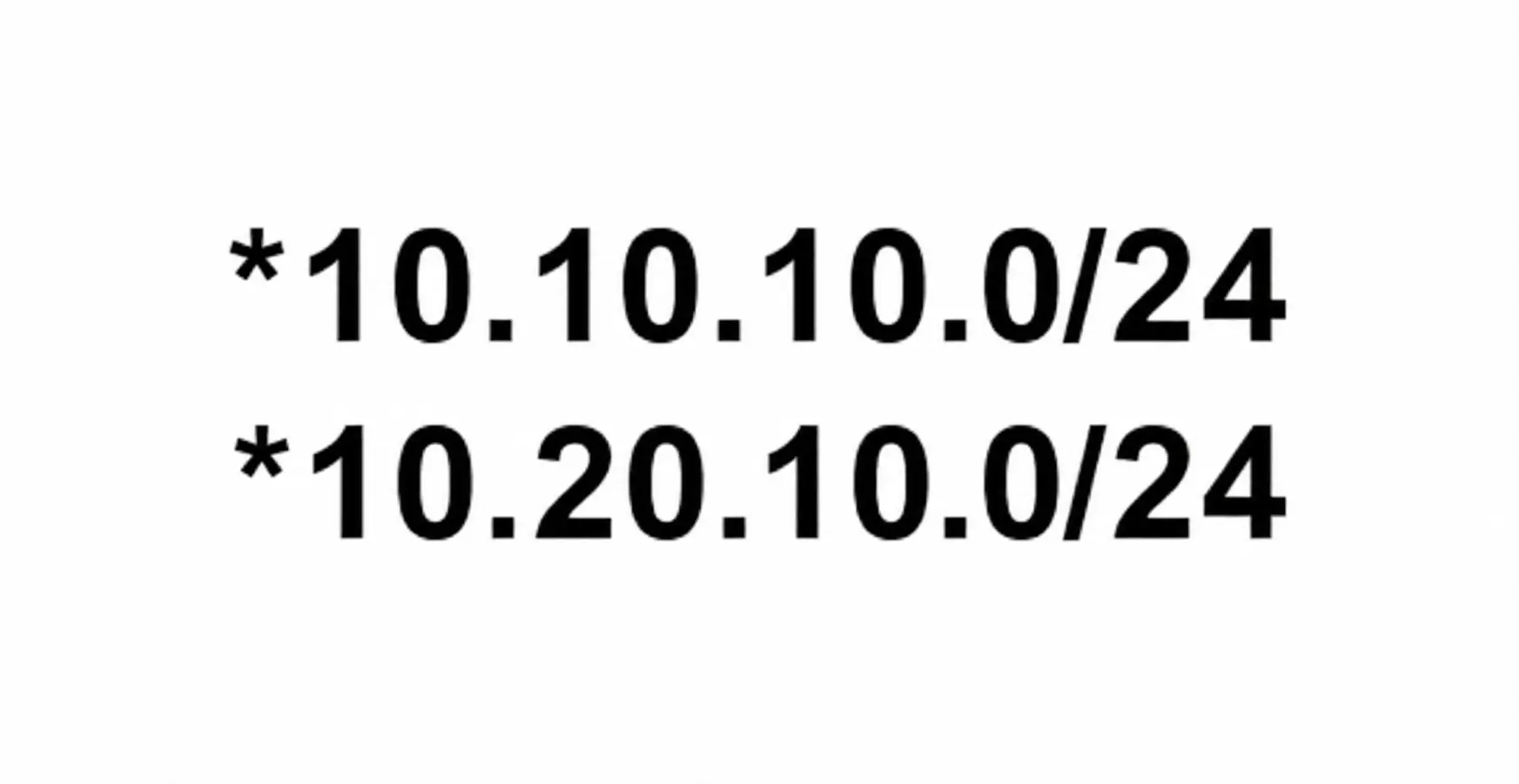

The command  redistribute ospf 1 match external  is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario.  References  :=

Designing and Implementing Cloud Connectivity (ENCC) v1.0 , Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE , Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs
